Intel Celeron J4105 Fanless Industrial PC With Dual LAN Dual COM Linux And DDR4
J4105 Fanless Industrial PC Description:
This J4105 insudtrial pc adopts a fanless metal body heat conduction solution, and the whole body is made of aluminium alloy. On the one hand, it has a large heat dissipation area, the heat can be quickly dispersed, effectively avoiding performance degradation or malfunction due to overheating, and always guaranteeing the efficient operation of the equipment; on the other hand, as it abandons the traditional fan cooling method, it also says goodbye to the annoying fan noise, and creates a quiet and comfortable environment for you to use.
No fan rotation to introduce dust, there will be no accumulation of dust inside, from the root to eliminate the erosion of dust damage to precision components, greatly extending the service life of the equipment. Such an excellent design is enough to ensure that the machine can run stably for 7 * 24 hours without interruption.
J4105 Fanless Industrial PC Details:
J4105 Fanless Industrial PC Details | CPU | Intel Celeron J4105 4 Cores 4 Threads Processor, 2.50GHz Burst Frequency, 4 MB Cache, 10W TDP |
| GPU | Intel UHD Graphics 600 |
| Memory | 1* Single Channel SODIMM DDR4, up to 8GB |
| Hard Disk | 1* M.2 2280 SSD + 1* 2.5 inch SATA HDD/SSD |
| Ethernet | 2* Realtek Gigabit Ethernet (RTL8111H/8111G) |
| Expansion | 1*Half-Height Mini PCIe, Expandable Wifi+Bluetooth /4G module |
| Triple Display | 2* HDMI on external interface + 1 * LVDS on internal connectors, support 4K @60Hz |
| External Interface | 1* DC-IN, 2* HDMI, 5* USB3.2 GEN1(5Gbps), 3* USB2.0, 2* LAN, 1* MIC-IN, 1* HP-OUT, 1* REC (Ghost button (one-key system restore), 1* RST (Reset button & CLR_CMOS button), 2* LED, 1* HDD LED (Red), 1* WIFI and 4G module states (Green), 1* PWR_BT |
| Internal Connectors | 1*Debug, 1*LVDS, 1*SATA_PWR, 1*SATA, 1*COM_CONN (4*COM RS232, support RS232 / RS485 set on COM1), 1*JFP (auto power on set up jumper), 1*GPIO, 1*Audio, 1*Speaker, 1*F_USB2.0 |
| Power | Input: AC 100-240V 50-60Hz, Output: DC 12V 3A |
| OS | Win 10/8, Linux, Ubuntu,Centos, etc. |
| Features | Support WiFi, 3G/4G Lte. Support Wake UP on LAN, S5 RTC Wake Settings (Power on at a set time), PXE Boot, Restore on AC powe loss (Auto Power on) |
| Operating Temperature | -20~60℃ |
| Storage Temperature | -30~70℃(15℃-35℃ Recommended) |
| Relative Humidity | 10%~90% ℃ (No condensation) |
| Dimensions | 136 x 126x 46mm, weight: about 0.65kg |
| Cooling System | Fanless Passive Cooling |
J4105 Fanless Industrial PC Memory:
Equipped with 1*DDR4 memory, all the products are selected from well-known brands such as Samsung, and also with high-quality industrial-grade original components such as magnesium. The combination of these top components brings obvious advantages. Firstly, the super compatibility makes it easy to adapt to all kinds of complex software systems and external devices. Secondly, the stability is excellent, in a long time of high-intensity operation process, it rarely appear lag, crash and other conditions, always provide you with stable and reliable computing support, so that your work, entertainment can be smooth and unimpeded.
J4105 Fanless Industrial PC Processor:
It is powered by an Intel Celeron J4105 processor with 4 cores and 4 threads. Its burst frequency is up to 2.50GHz, which means that it can quickly burst into action and process data quickly when faced with instantaneous high-load tasks. Coupled with a large 4MB cache, it further enhances operational efficiency. Not only that, its TDP (Thermal Design Power Consumption) is only 10W, which ensures powerful performance while greatly reducing energy consumption, saving energy and protecting the environment.
The mini PC also has a built-in Intel Ultra HD Graphics 600 GPU, which gives it an impressive graphics processing power.
J4105 Fanless Industrial PC Triple Screen Display:
The device can easily display three screens synchronously or asynchronously by connecting the HDMI1, HDMI2 and LVDS display pin connectors. In daily office scenarios, you can use one screen for processing documents, writing reports, another screen dedicated to open various office software aids, such as Excel function query window, and another screen for real-time checking emails, receiving the latest information, three screens synchronised operation, so that your work efficiency geometrically multiplied, without the need to switch the window, all the information in front of you, and methodically deal with all the matters. You can handle all matters in an organised manner.

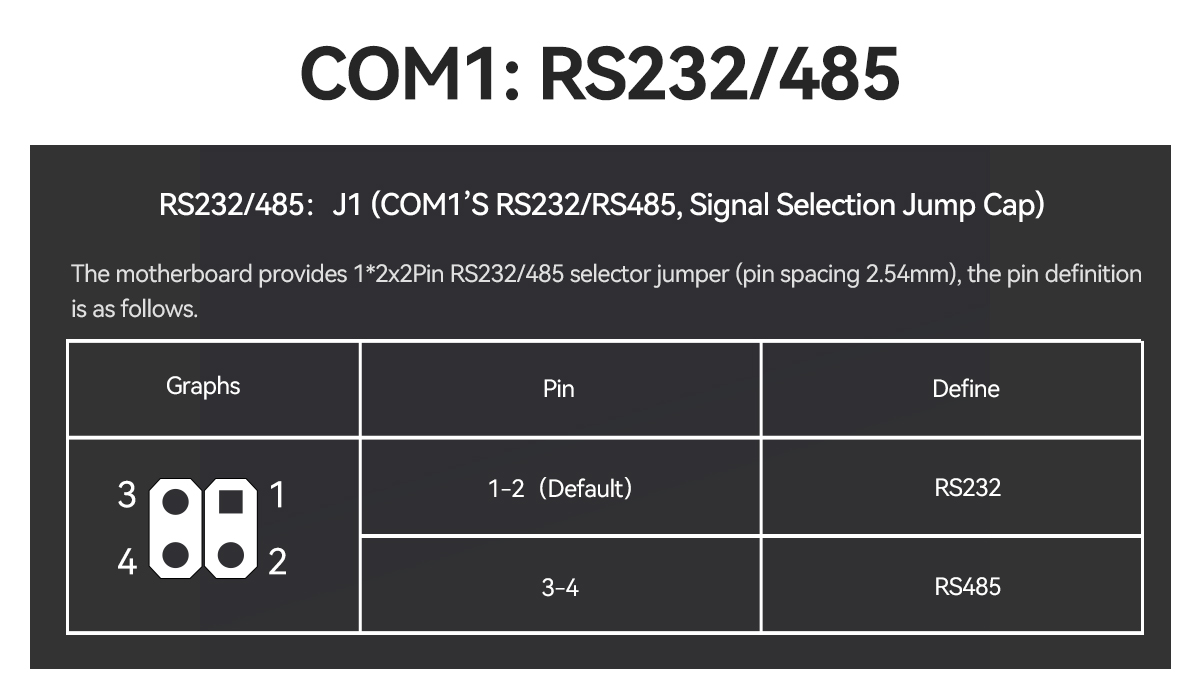

J4105 Fanless Industrial PC 4COM Interface:
It is equipped with 4 RS232 COM ports, which means that it can connect a variety of different external devices simultaneously, meeting diverse usage scenario requirements. Among them, the COM1 port supports RS232/485 jumper selection function. When you need to connect and control more external devices, you only need to simply switch through the jumper cap, and you can flexibly convert it from RS232 mode to RS485 mode, easily achieving expansion and firmly controlling more external devices, making your operation more convenient and efficient.
