Dual LAN 4COM ARM RK3568 Industrial PC DDR4 8G EMMC 16G Android 11 Embedded Mini PC
Dual LAN 4COM Industrial PC Description:
In today's highly competitive industrial field, efficient solutions are of crucial importance. The ARM RK3568 embedded industrial mini PC is undoubtedly your ideal choice. It is equipped with the advanced Android 11 system, ensuring extremely smooth operation and remarkable stability, providing reliable guarantee for your industrial applications.
It has on-board DDR4 memory with a maximum support of up to 8GB. Whether running complex industrial software or handling multiple tasks simultaneously, it can easily cope, fully meeting the stringent memory requirements of various complex industrial applications. The equipped 1*eMMC has a capacity of up to 256GB, like a powerful data treasure trove, allowing you to easily store a large amount of precious industrial data without worrying about insufficient space.
This mini PC also has dual LAN ports, four COM ports, HDMI and Display Port interfaces, as well as 4K@30Hz high-definition display output. The high-resolution display output enables you to clearly view industrial data and images, bringing an ultimate visual experience to your industrial operations.
Dual LAN 4COM Industrial PC Details:
Dual LAN 4COM Industrial PC Details | CPU | ARM RK3568 4 Core 64-bit Processor, up to 2.0GHz |
| GPU | ARM G52 2EE, Supports OpenGL ES1.1/2.0/3.2, OpenCL2.0, Vulkan1.1, embedded high-performance 2D acceleration hardware |
| NPU | Built-in neural network processor NPU, 1.0TOPS @INT8 performance; Support Caffe / Mxnet / TensorFlow / TF Lite / ONNX / Darknet models; Provide AI development tools: support fast model transformation. |
| GPS | Built-in GPS/BD module, sensitivity: -162dBm, receiving frequency: 1575.42MHz; Satellite channels: 20 channels Positioning accuracy: <10m (optional) |
| RTC | Built-in real-time clock power supply battery, support timer on, timer off. |
| Ethernet | 2*LAN 10Mbps / 100Mbps (1*RJ45 LAN or 2*LAN optional);
2.4GHz Support WiFi 802.11 b / g / n / ac protocol or 5GHz Dual-band WiFi (optional);
Support Bluetooth function, V2.1 + EDR / Bluetooth 3.0 / 3.0 + HS / 4.1 / BLE (optional);
Support 4G / 5G function, 5G-NR-NSA / 5G-NR-SA / LTE-TDD / LTE-FDD / TD-SCDMA / EDGE / GPRS / GSM (optional) |
| Display Ports | 1*eDP Port (eDP1.3 support 2560*1600 60fps output), support 3.3V / 5V power supply;
1*LVDS interface (single / dual, 6-bit / 8-bit), support 1080P 60fps output, support 3.3V / 5V / 12V power supply;
1*HDMI OUT 2.0 support 4K 60fps output (optional);
1*MiPi interface (support MiPi 2560*1600 60fps output) upport three-screen asynchronous display function |
| Audio | 1*Speaker Output (2*18W 4R), 1*Headset Output, 2*Microphone Input |
| Memory | Onboard DDR4 2G, Max Up To 8GB |
| Hard Disk | 1x eMMC 16GB (32GB / 64GB / 128GB / 256GB optional); 1x SATA3.0 HDD / SSD |
| OS | Android 11.0, Linux, OTA remote upgrade, Watchdog, etc. |
| I/O Interface | 2*USB 3.0, 2*Gigabit LAN (or 1*LAN Optional), 4*COM RS232 (COM3-4: Support RS485 JP Optional); 1*HDMI,1*AUD In / Out, 1*SIM, 4*GPIO (Motherboard: 8*GPIO), 1*DC, 1*Power Button |
| Power | 1*DC12V |
| Size | 192mm*127mm*40mm |
| Suitable Temperatur | Operating Temperature: -10℃ to +70℃, Storage Temperature: -20℃ to +70℃, Storage Humidity: 10% ~ 80% (relative humidity, no condensation) |
Dual LAN 4COM Industrial PC Ethernet:

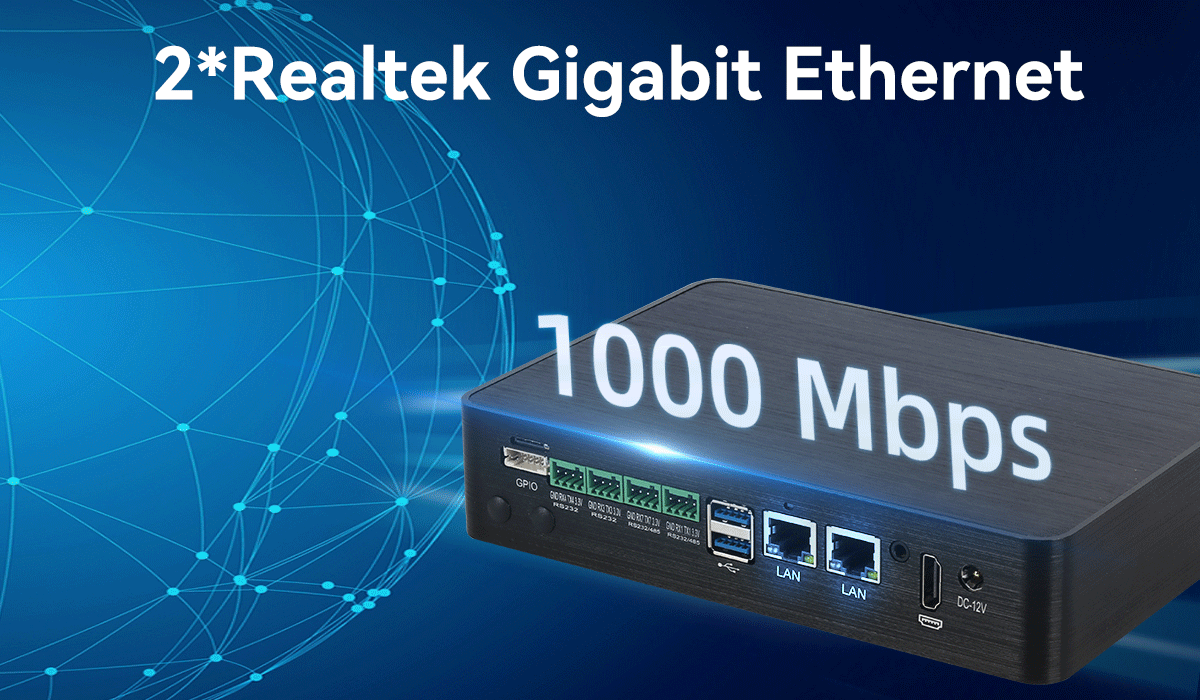

It's equipped with 2*Realtek Gigabit Ethernet and 1*Mini PCIE interfaces which can support 4G / 5G LTE networks. No matter which industrial site you are in, you can always maintain a high-speed network connection to ensure the rapid transmission of data and real-time communication.

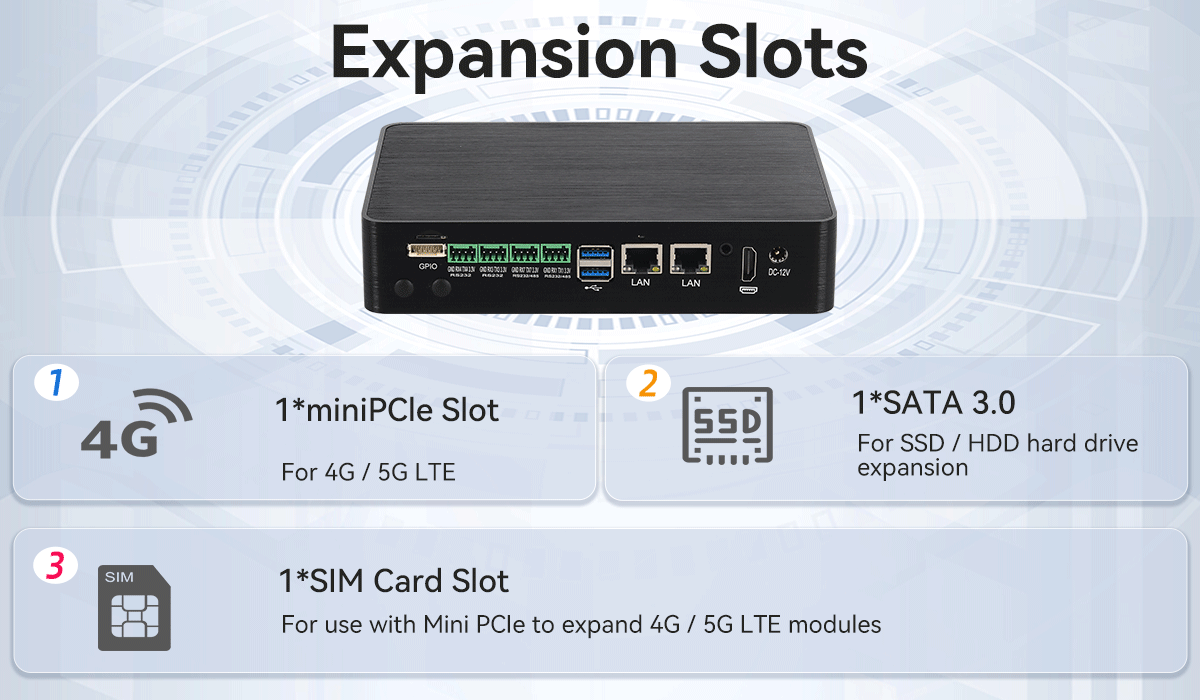

Dual LAN 4COM Industrial PC Expansion Slots:
The industrial computer has 1 SATA3.0 interface to connect HDD or SSD, which can further expand your storage capacity and adapt to the growing data storage needs. It also has a Mini PCIE interface that supports 4G/5G LTE networks.
Dual LAN 4COM Industrial PC OS:
The ARM RK3568 Industrial PC supports Android 11, Linux, OTA remote upgrade, Watchdog, etc. operating system.

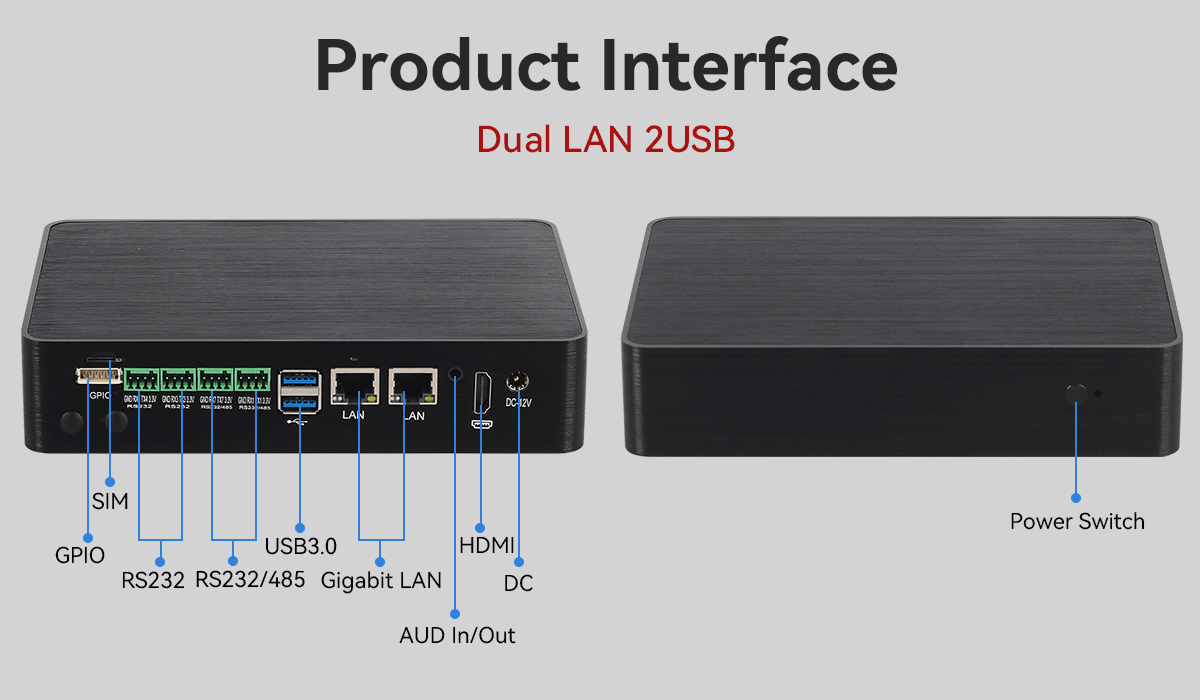

Dual LAN 4COM Industrial PC Product Interface View:
Its extremely high performance and abundant ports enable it to be widely used in fields such as industrial automation, intelligent security monitoring, and medical equipment.

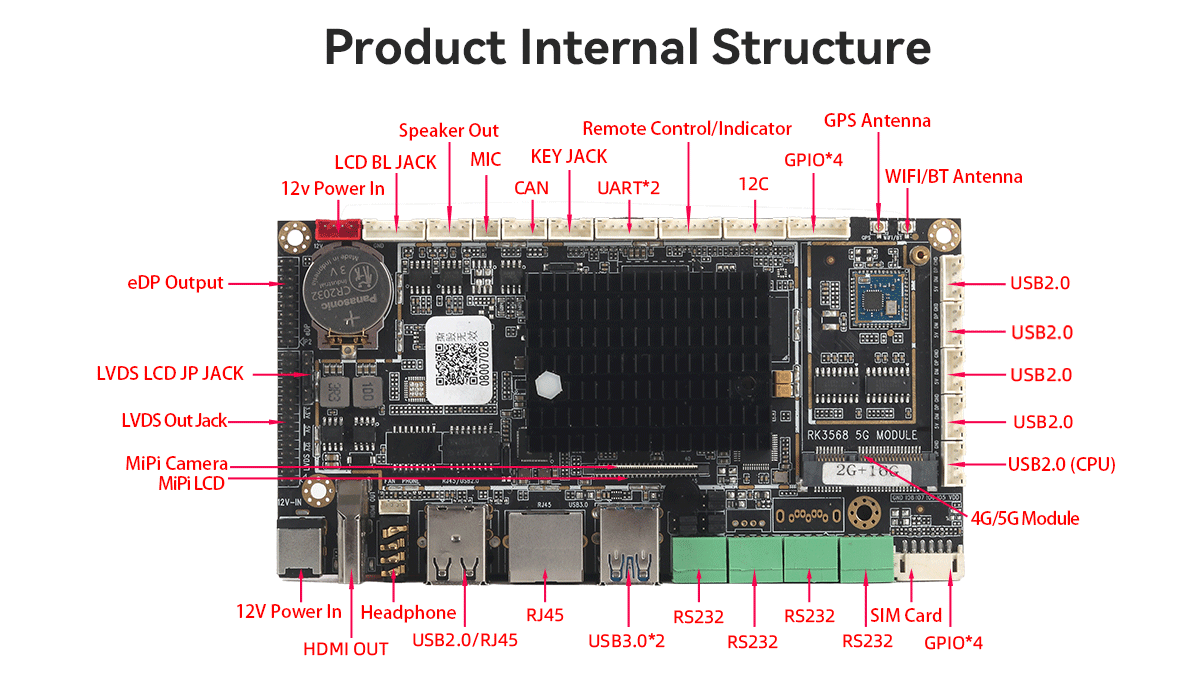

Dual LAN 4COM Industrial PC Product Internal Structure:
