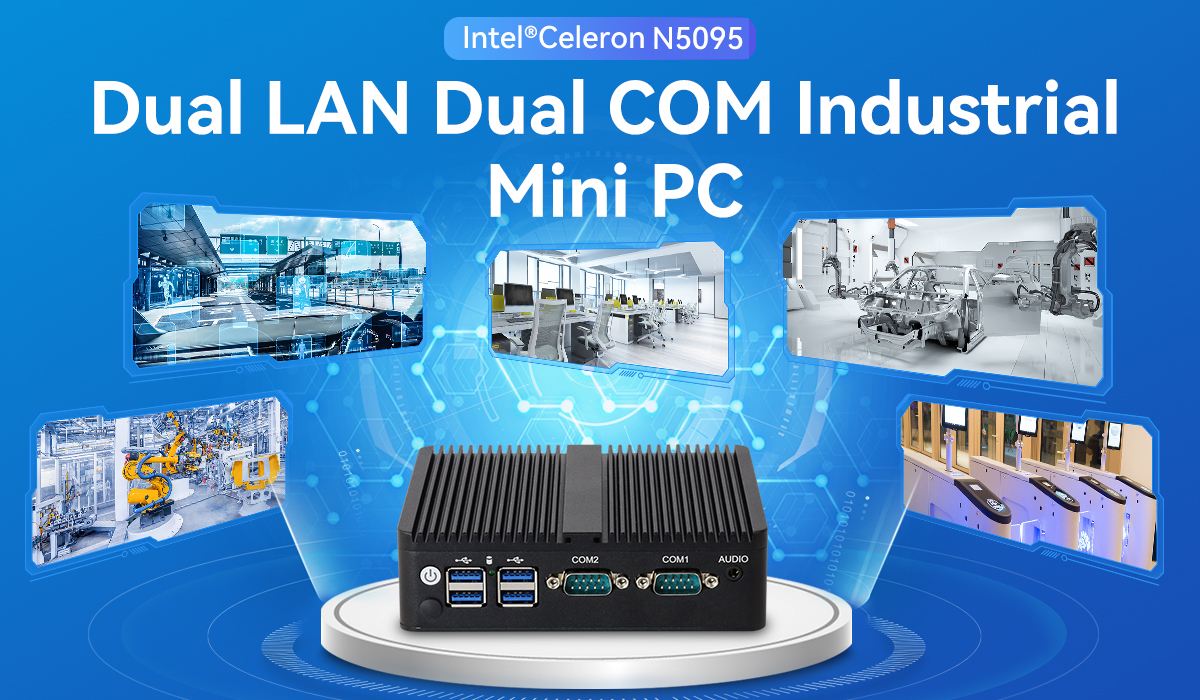

Fanless Industrial Mini PC With DDR4 16GB RAM Supports Windows 11 Linux

Fanless Industrial PC Description:

This industrial mini computer can be equipped with an optional Intel® Celeron N5095 quad-core processor (10nm process, 15W ultra-low power consumption), with 2.9GHz turbo frequency and 4MB L3 cache to provide efficient computing support for industrial scenarios, easily coping with automation control, edge computing and multi-task parallel requirements.

With Intel UHD Graphics integrated graphics card (450MHz base frequency), it supports 4K@60Hz output, meeting the needs of industrial HMI interface, monitoring video stream and lightweight graphics processing.

The network connection of this Celeron mini pc is stable and fast, with two Realtek RTL8111H Ethernet interfaces to ensure stable and efficient network transmission.
In addition, it also supports AT and ATX modes, and one Mini PCIE interface can support WIFI/4G, making network connection more free. The system has strong compatibility and can be perfectly adapted to Windows 10, Windows 11 and Linux systems.

Fanless Industrial PC Specification:

Fanless Industrial PC Hard Disk:

The industrial fanless mini desktop computer equipped with DDR4 SODIMM single slot design, it supports up to 16GB of ultra-large memory, low power consumption and high frequency characteristics, easily cope with multi-tasking and reduce lag.
a M.2 NVMe 2280 interface: supports PCIe Gen3/Gen4 high-speed SSD, with a read and write speed exceeding 3500MB/s, and extremely fast response to system startup and file loading; a 2.5-inch SATA interface: compatible with SSD/HDD dual selection, taking into account large-capacity storage and cost optimization, meeting the needs of massive data such as audio and video materials and project files.

Fanless Industrial PC Features:

This fanless mini pc is equipped with dual Gigabit network interfaces, a standard Gigabit Ethernet and a Realtek 8111H high-performance network card, supporting Wake-on-LAN remote wake-up and PXE network boot functions, meeting high reliability requirements such as enterprise-level server deployment and remote operation and maintenance, with a transmission rate of up to 1Gbps, easily coping with large data transmission and multi-device collaboration scenarios.
In terms of display, the dual-interface design takes into account compatibility and scalability: HDMI 1.4 supports ultra-clear output, the VGA interface is compatible with mainstream display devices, and supports synchronous/asynchronous dual-screen display mode. The synchronous mode is suitable for conference presentations, and the asynchronous mode can flexibly split the screen to handle multiple tasks, meeting the needs of multiple scenarios such as design, monitoring, and teaching.

Fanless Industrial PC Application:

In terms of intelligent interaction, the electronic signage system creates a new experience for commercial promotion and information transmission with clear and flexible display methods, attracting more attention; the multimedia education program uses rich interactive functions and high-quality display effects to create a lively and interesting learning environment and stimulate learners' enthusiasm and creativity.
In terms of security management, the access control system builds a solid barrier for your site safety with accurate identification and reliable protection, so you don't have to worry about safety hazards.

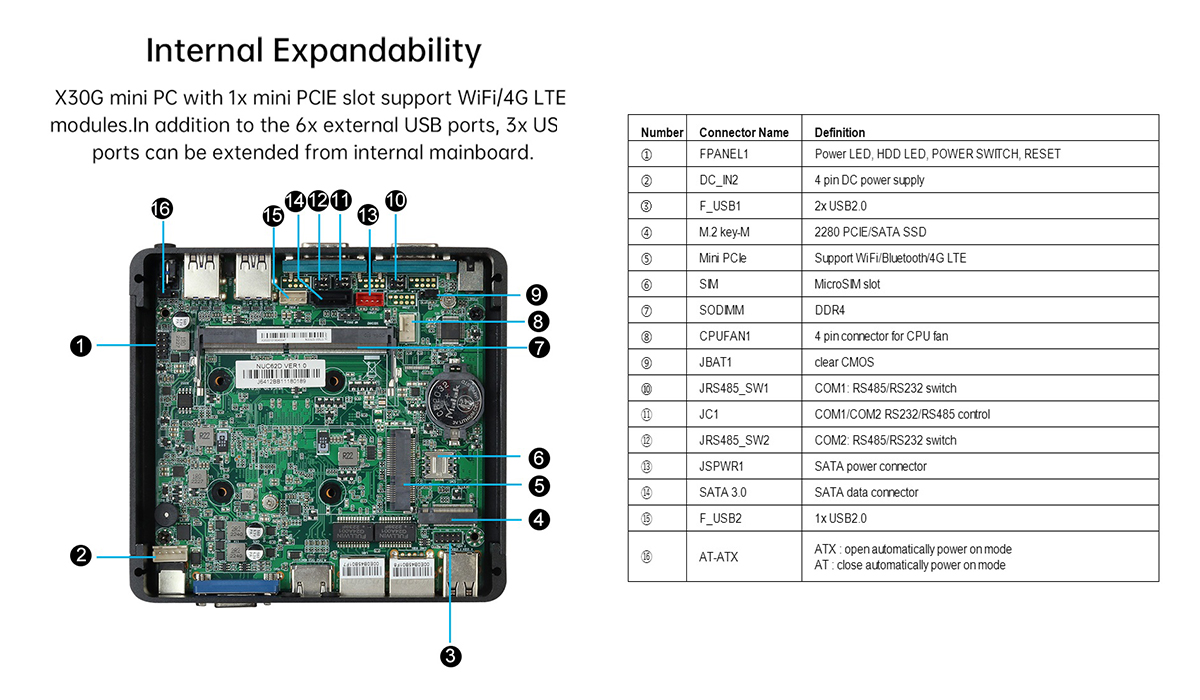

Fanless Industrial PC Internal Structure View:

Linux Fanless Industrial Mini PC

Windows 11 Fanless Industrial Mini PC

Fanless Industrial Mini PC With DDR4 16GB RAM Supports Windows 11 Linux Images
